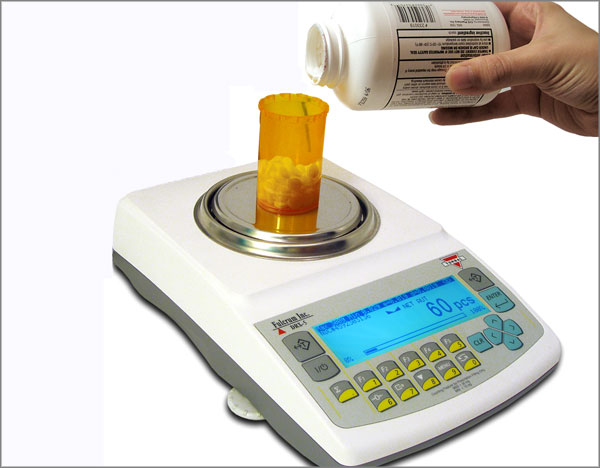

TORBAL ® Rx brings you pillcounting.com - experience our tablet counters, learn about our technology, understand the features...
SCALE SPECIFICATIONS | |
Maximum Capacity | 300g |
Readability (d) | 0.001g |
Repeatability (Standard Deviation) | 0.001g |
Linearity | +/- 0.002g |
Stabilization time (typical) | Approx. 3s |
Calibration | Internal and Automatic |
Tare Range | -300g |
Accuracy Class | II |
Pan Dimensions | 120mm |
Scale Dimensions | 216 x 345 x 90mm |
Operating Temperature | +15C to +30C |
RS232 Port | Bidirectional |
PS2 Keyboard Port | Standard |
COUNTING FEATURE SPECIFICATIONS | |
MW (Minimum Piece Weight) | 30mg (3e) |
MSS (Minimum Sample Size) | 10 pieces |
Sample Size Selection | 10, 30, 60 |
Pharmacy Automation Evaluation Parameters – Part 1 |
The usual standard used for reference in pill counting time is the time it takes to fill a script manually using a counting tray. These times vary depending upon the operator. The following times are based upon averaging the results of many operators and are for pill counting only (do not include fetching the supply bottle from its storage place or any drug verification); The general form of an equation for this operation would be P = nV + C, where P is the number of pills counted, n is the number of 5 pill sweeps made with the counting spatula, V is the time per sweep in seconds, and C is the time spent in setting up the counting (opening the supply bottle, pouring an adequate amount out on the tray, pouring the counted pills into the customers vial, pouring the excess back into the supply bottle, and screwing the cap back on the supply bottle)
|
Read more... |
